L&T

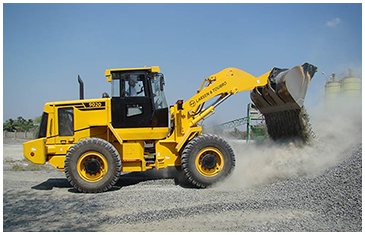

Wheel loaders
9020
Specifications
| Standard Operating Weight | 11.5 T | ||
| Bucket capacity | 1.7 – 3.0 m3 | ||
| Rated payload | 3,500 kg | ||
| Engine | Ashok Leyland AL412-TAC3 | ||
| 131.5 HP @ 2300 rpm (ISO 1585) | |||
| meeting CEV BS III | |||
| Power Train | Fixed Front Axle | ||
| Rear axle with 45° Limited Slip Differential | |||
| Loader Bucket Options | 2.0 m3 | – | GP |
| 1.5 m3 | – | Rock material | |
| 1.7 m3 | – | Heavy material | |
| 3.0 m3 | – | Light material | |
| Ground Engaging Tools | Weld-on Tooth | ||
| Bolt-on Tooth | |||
| Bolt-on Cutting Edge (Reversible) | |||
| Optional Equipment | Dozer Blade | ||
| Cab: | Air conditioned | ||
| Windshield guard | |||
| Automatic Fire Suppression System | |||
| Fire Extinguisher | |||
| Automatic Centralised Lubrication System | |||
| Rear View Camera | |||
| Cold Start Kit | |||
| Audio Visual Alarm for Reversing | |||
